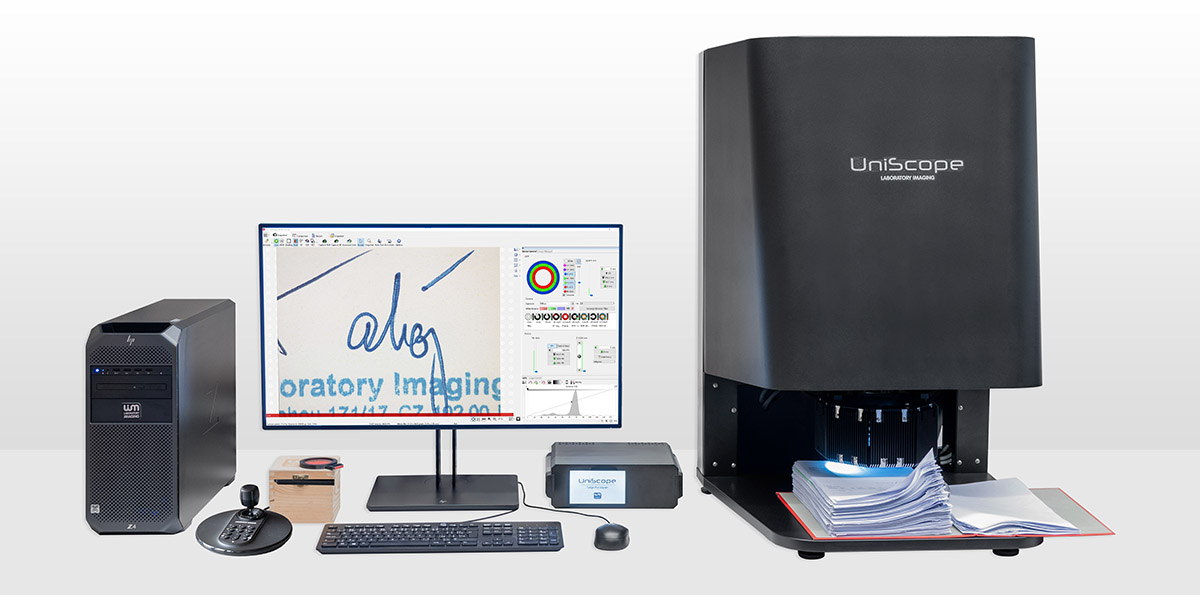

UniScope is a versatile system suitable for forensic examination of:

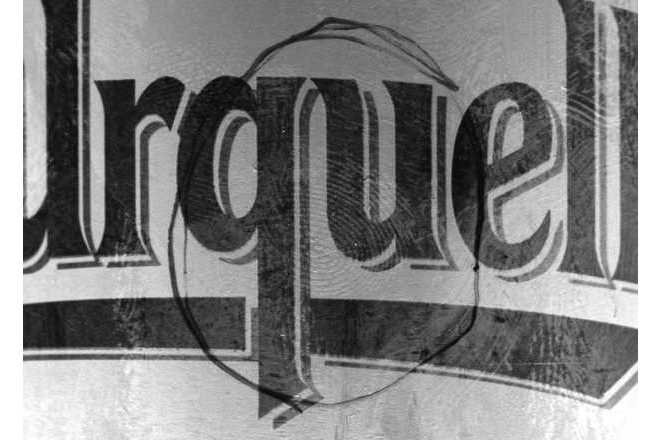

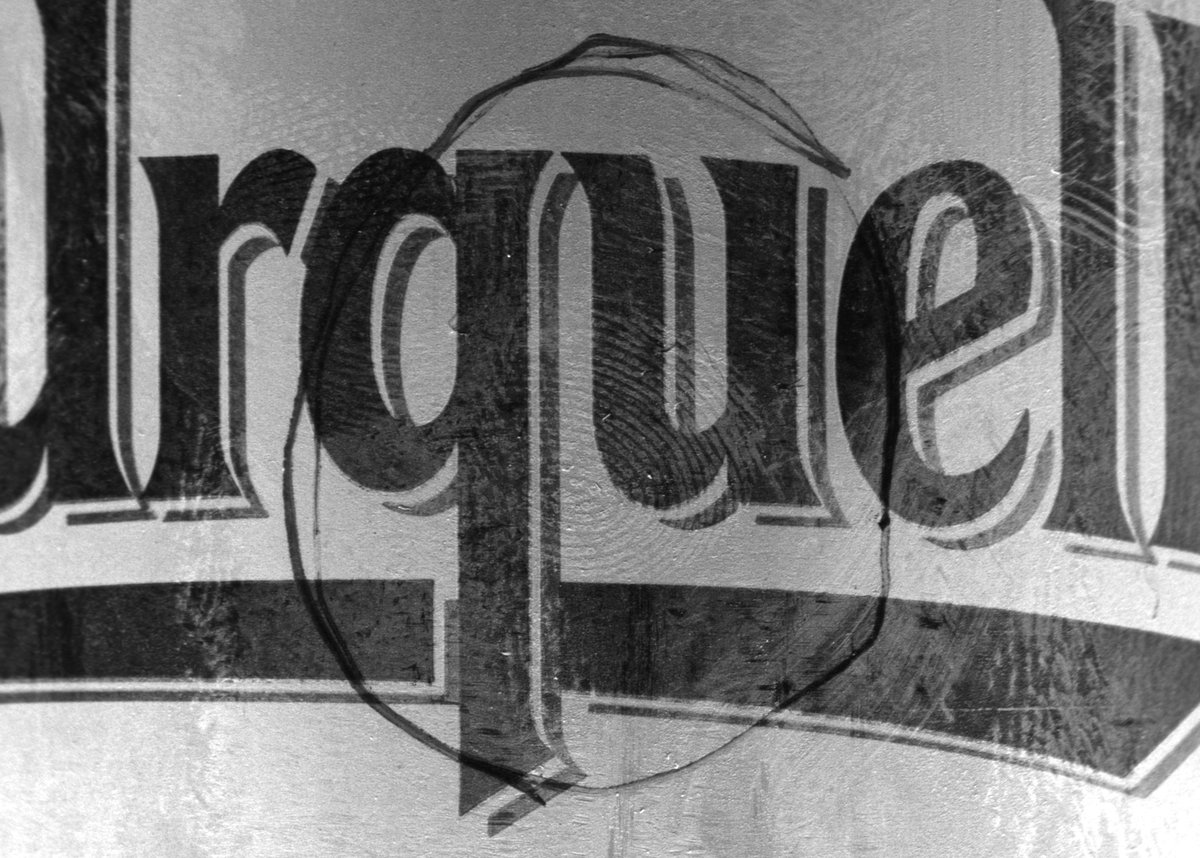

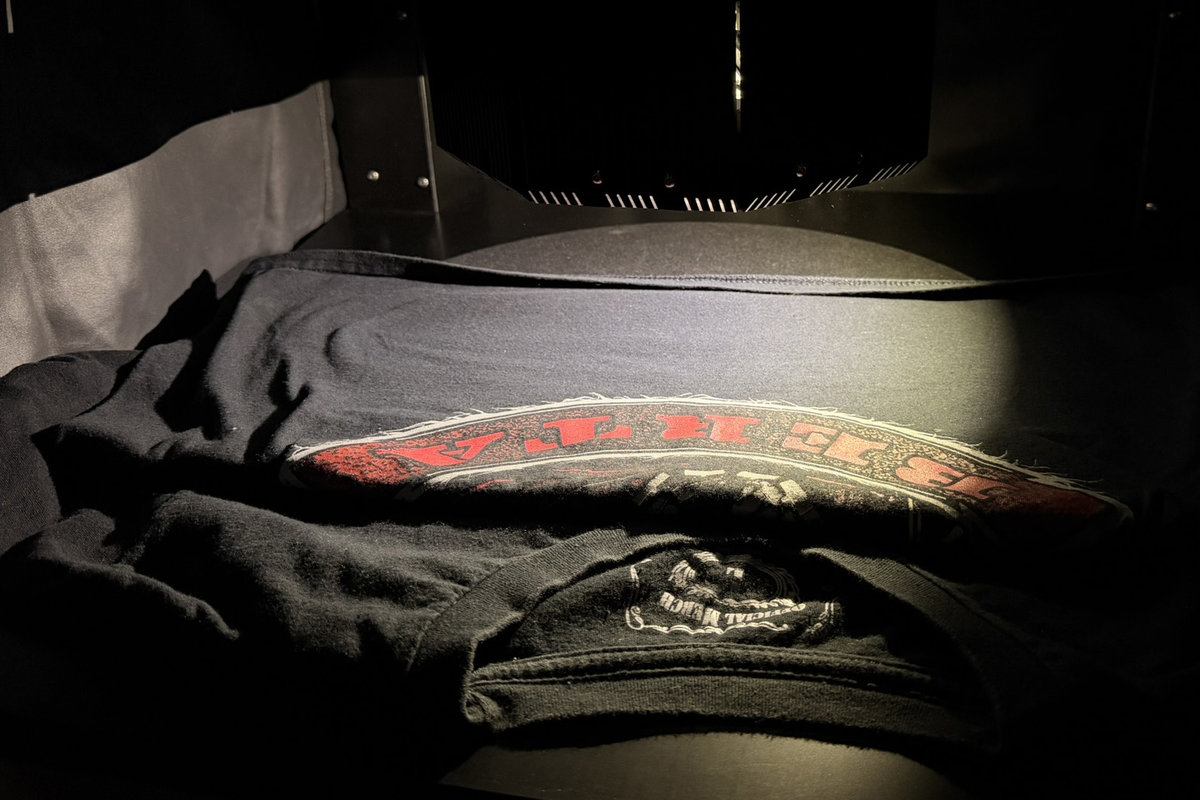

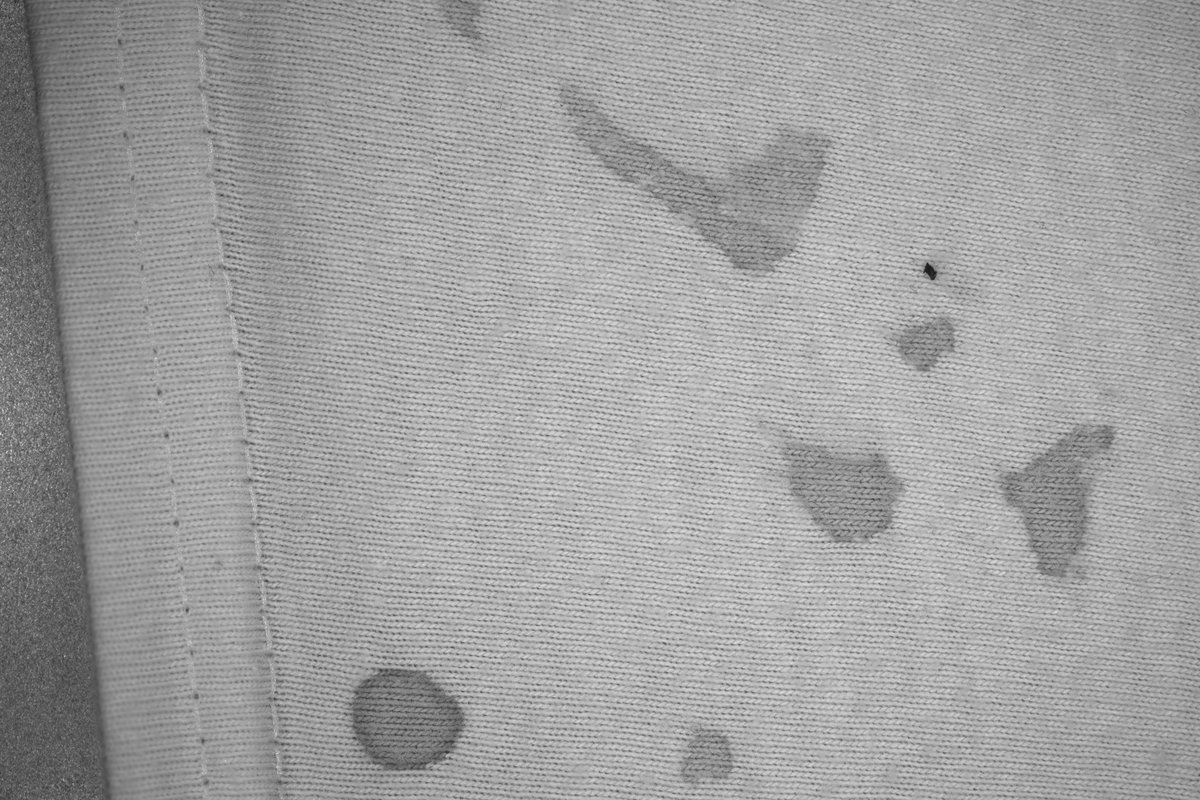

RGB imaging, imaging with oblique illumination, imaging with IR illumination.

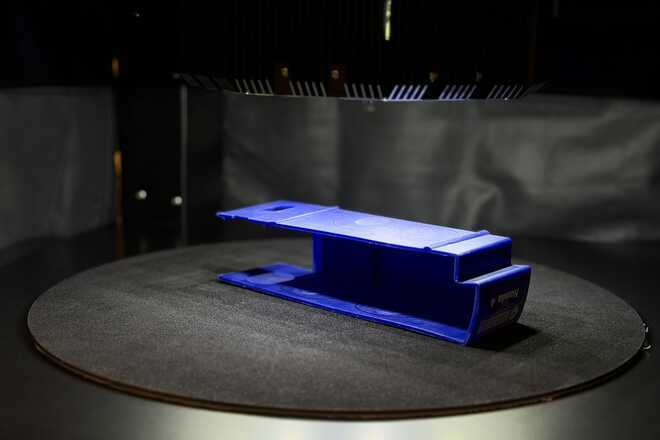

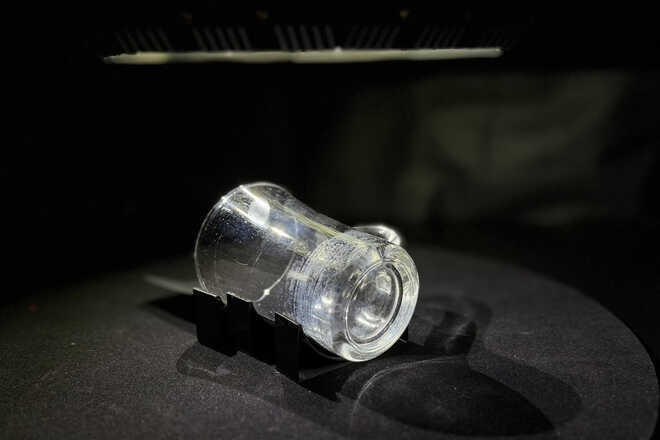

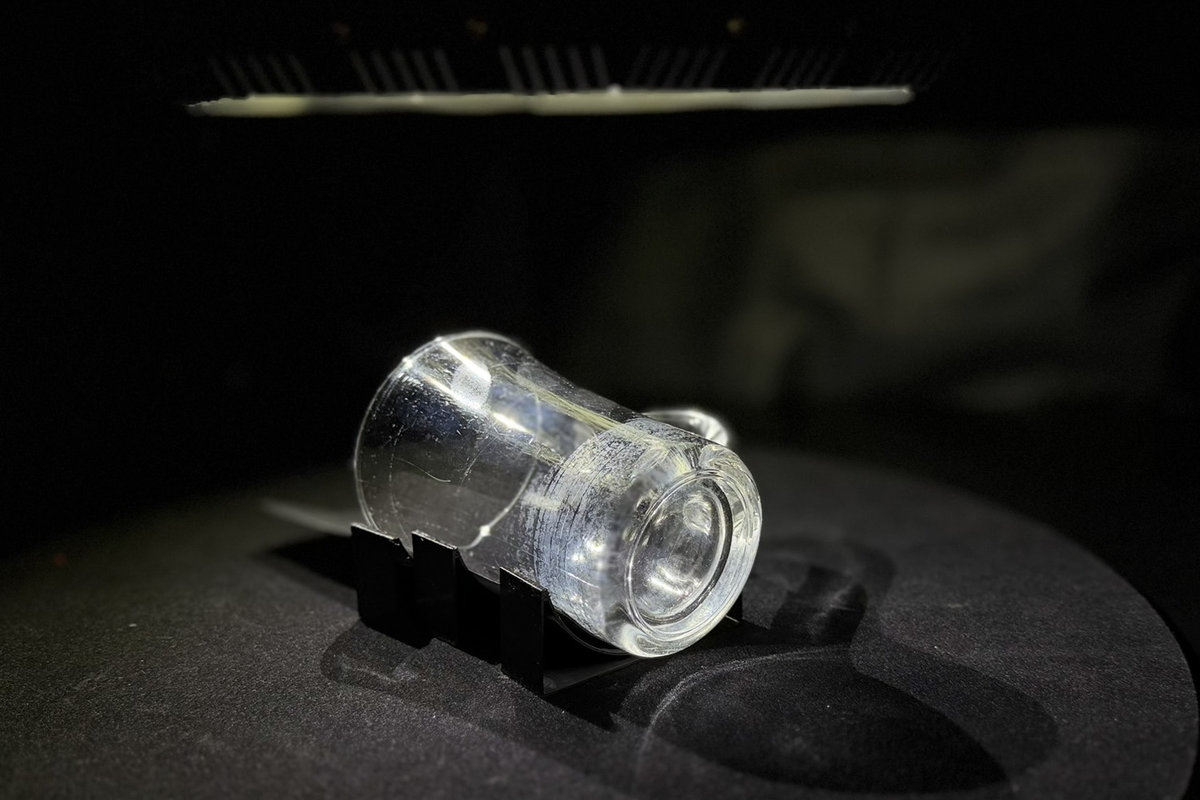

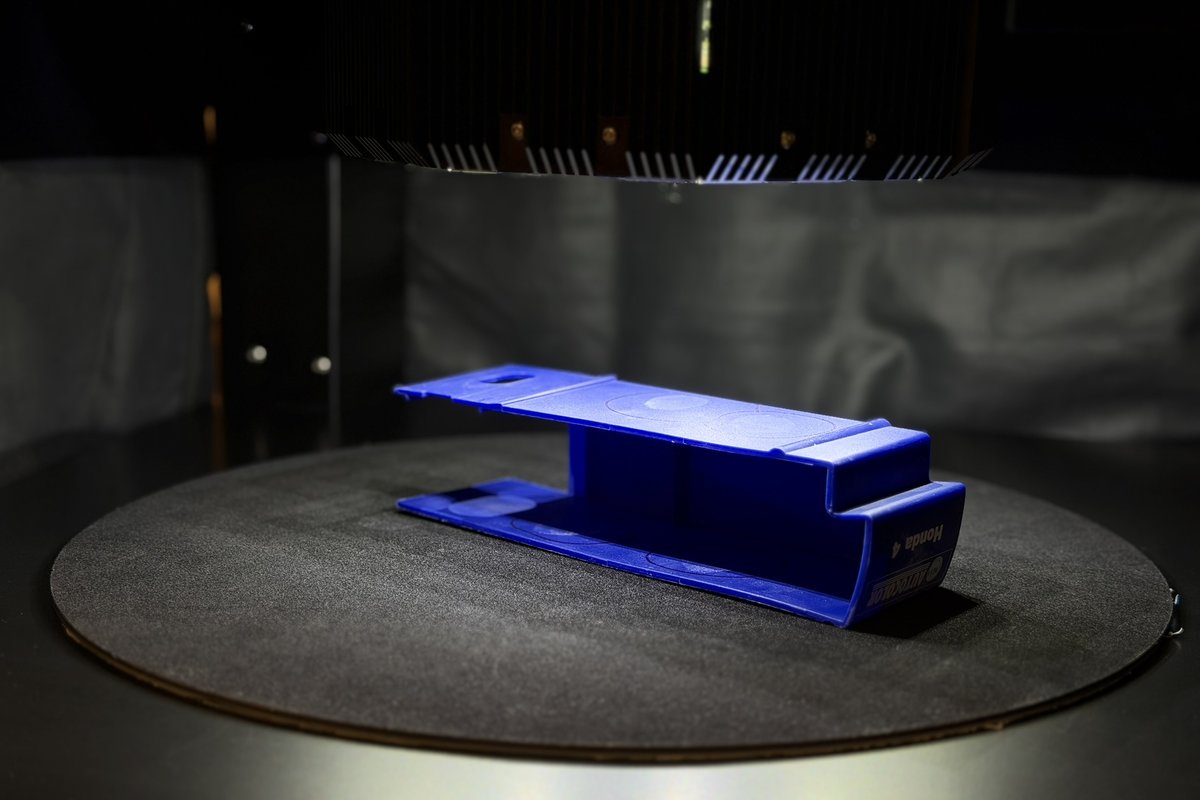

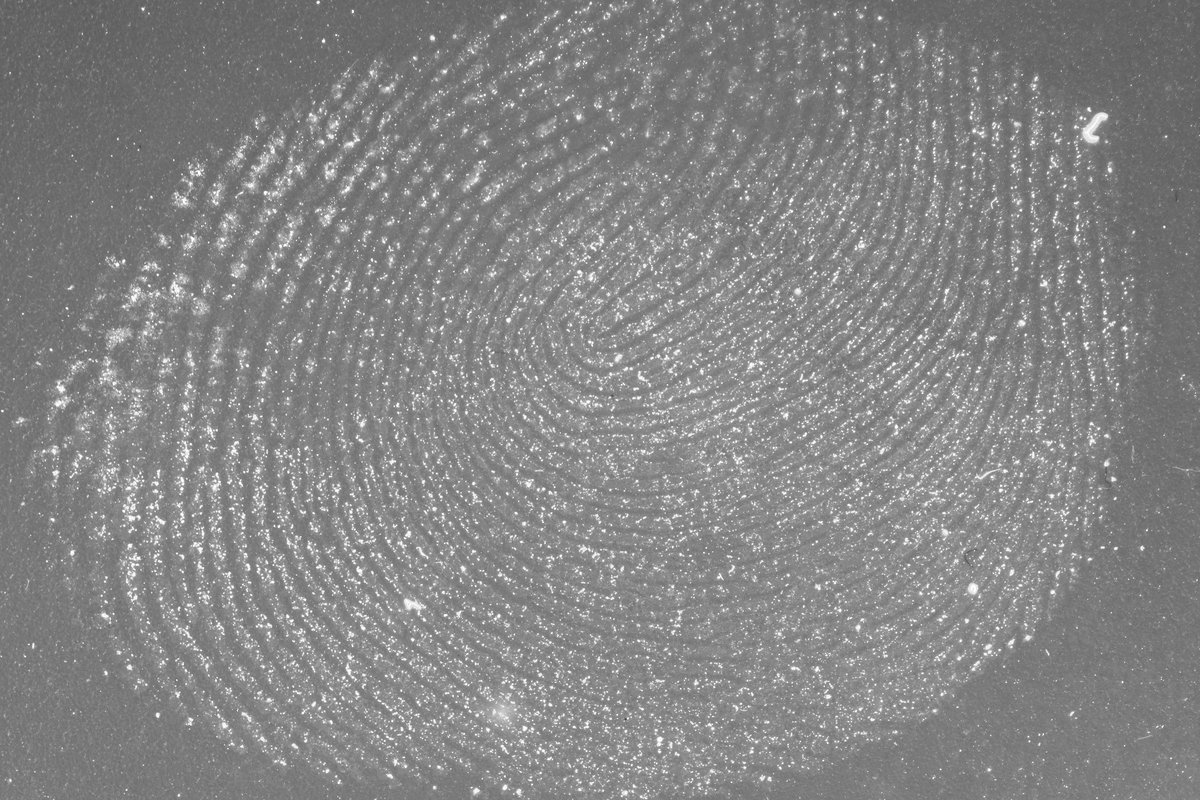

Direct imaging of fingerprints on object surfaces, treated with fluorescent powders and dyes or lifted with foils.

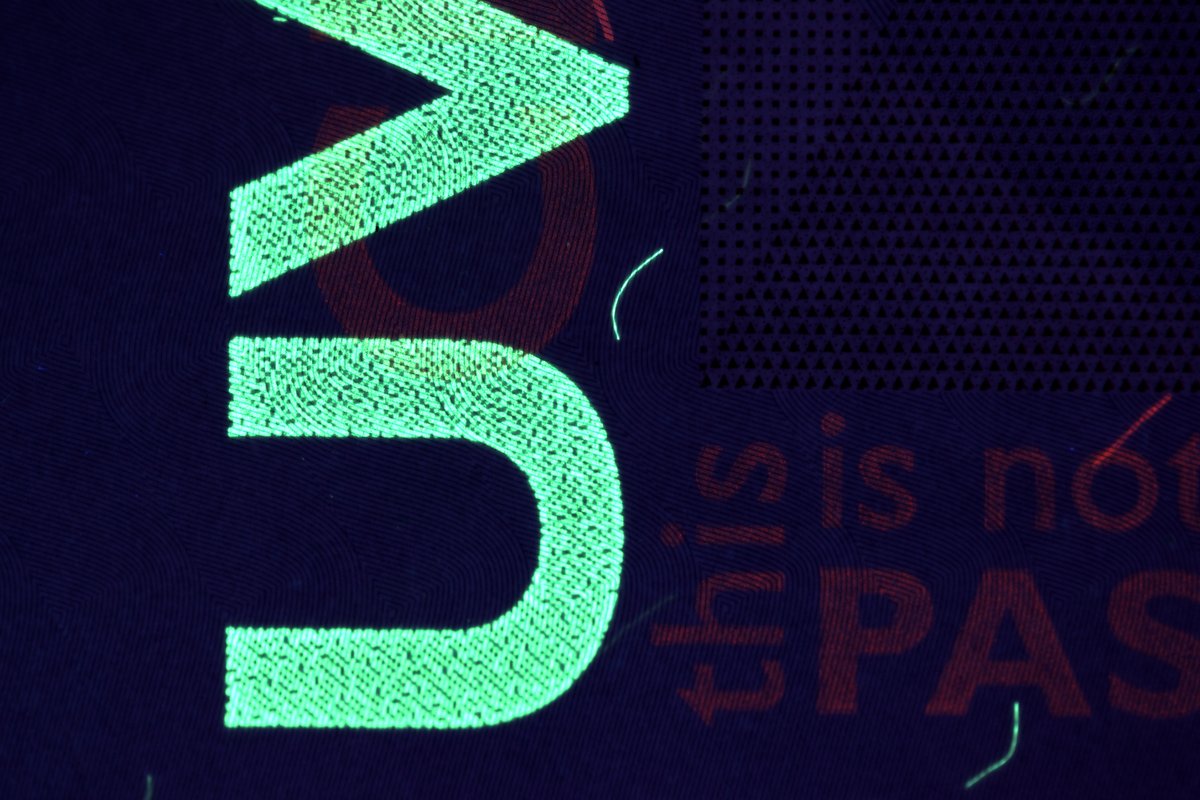

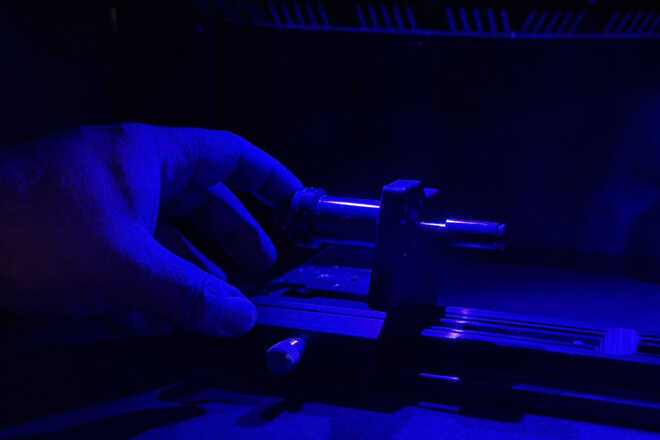

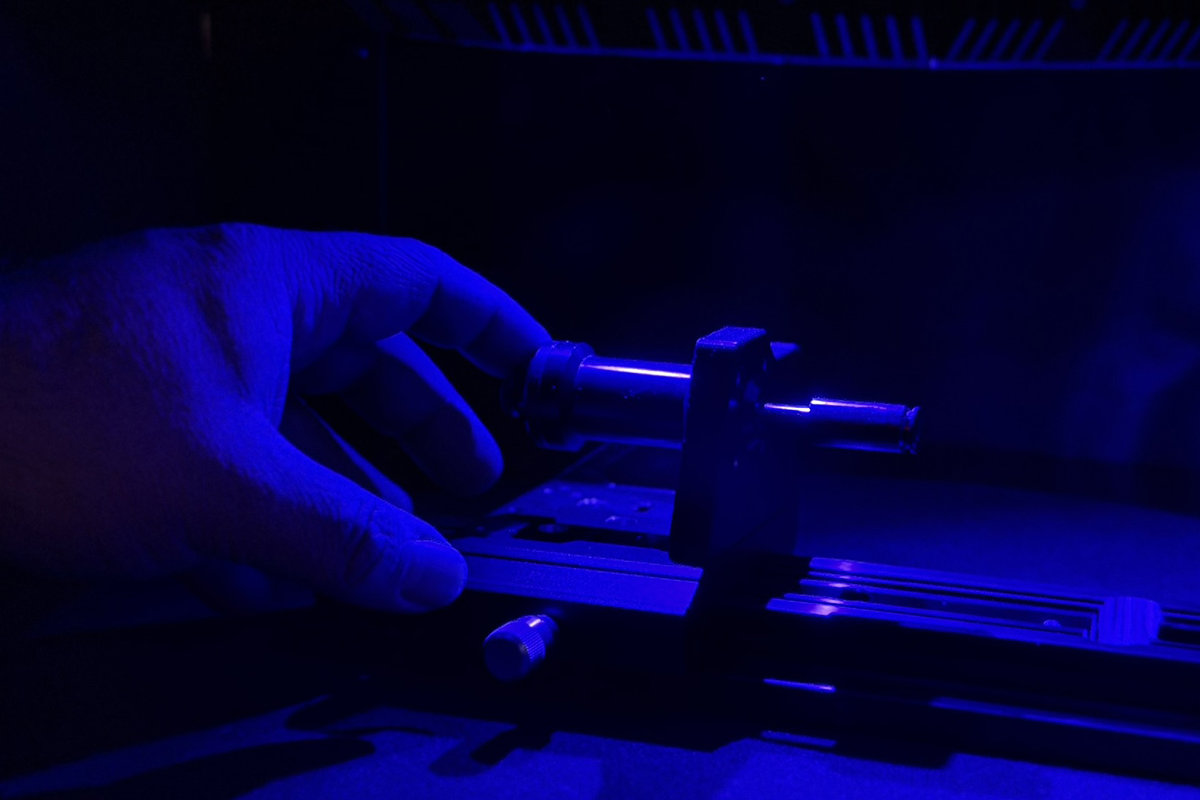

RGB Imaging, UV fluorescence.

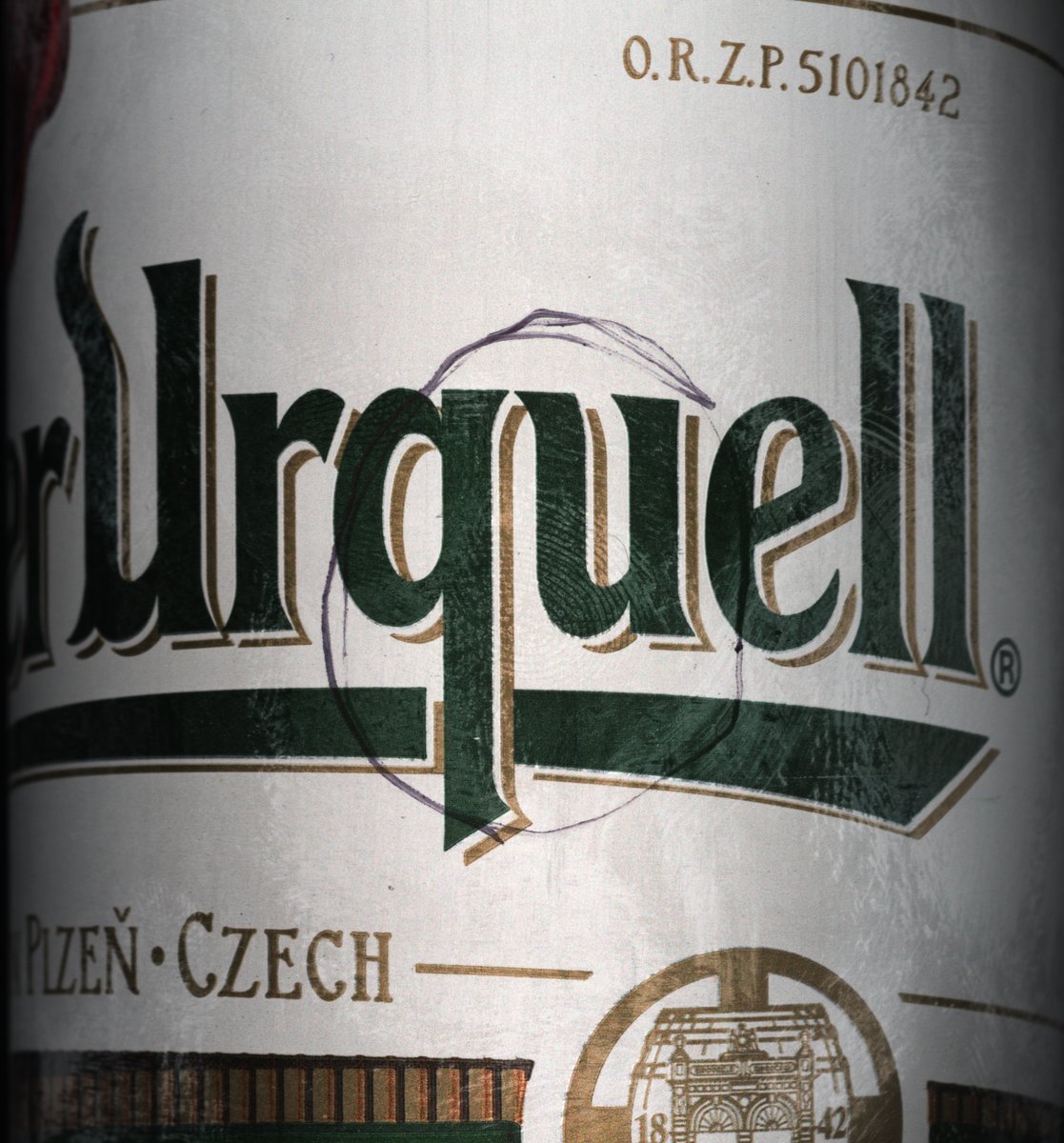

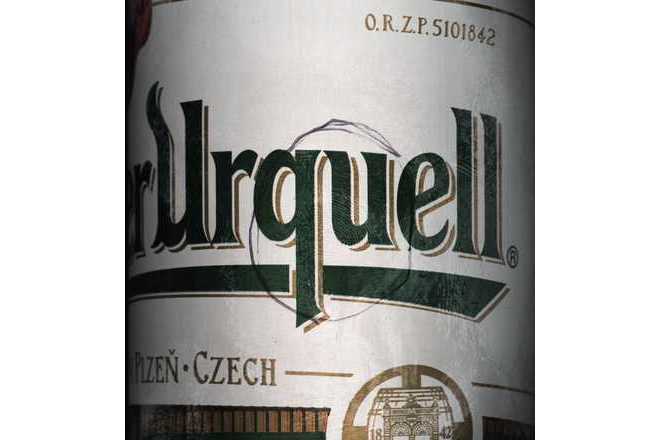

It is possible to capture e.g.: documents in binders, large cans with fingerprints and others.

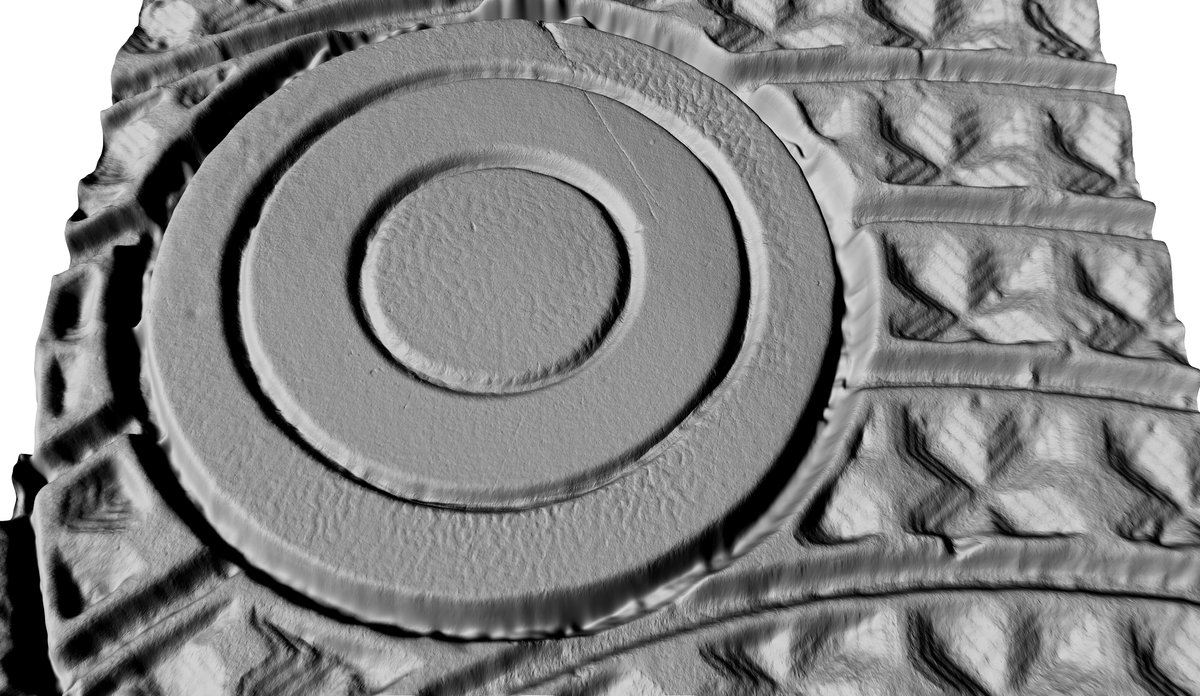

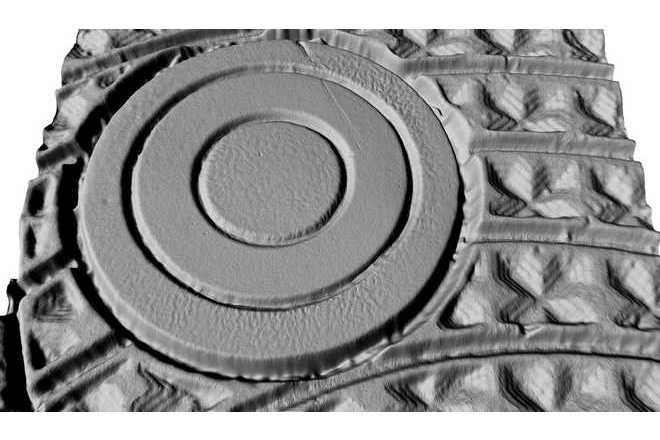

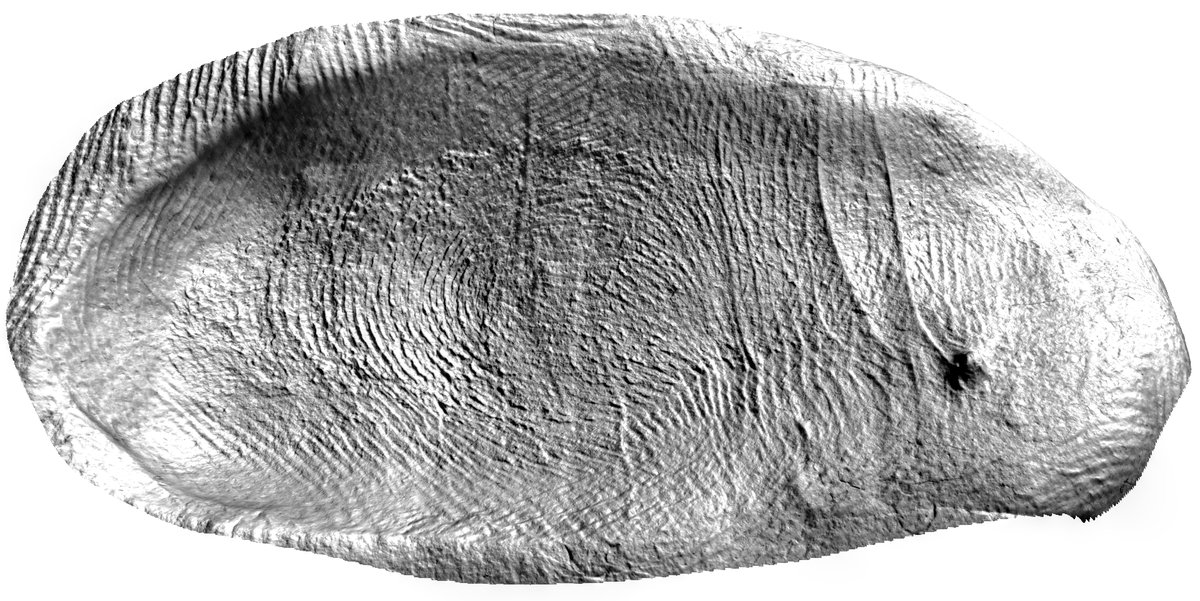

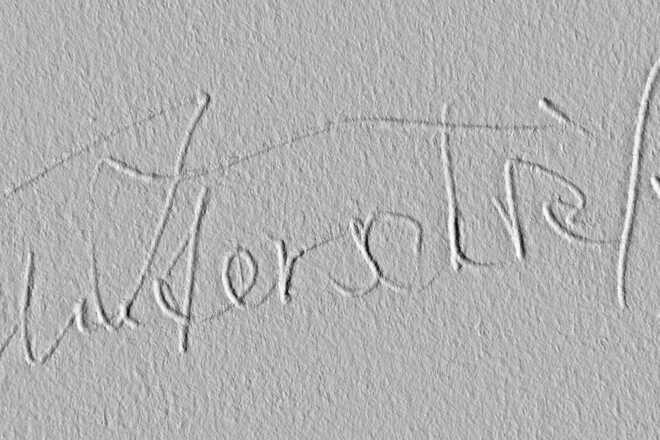

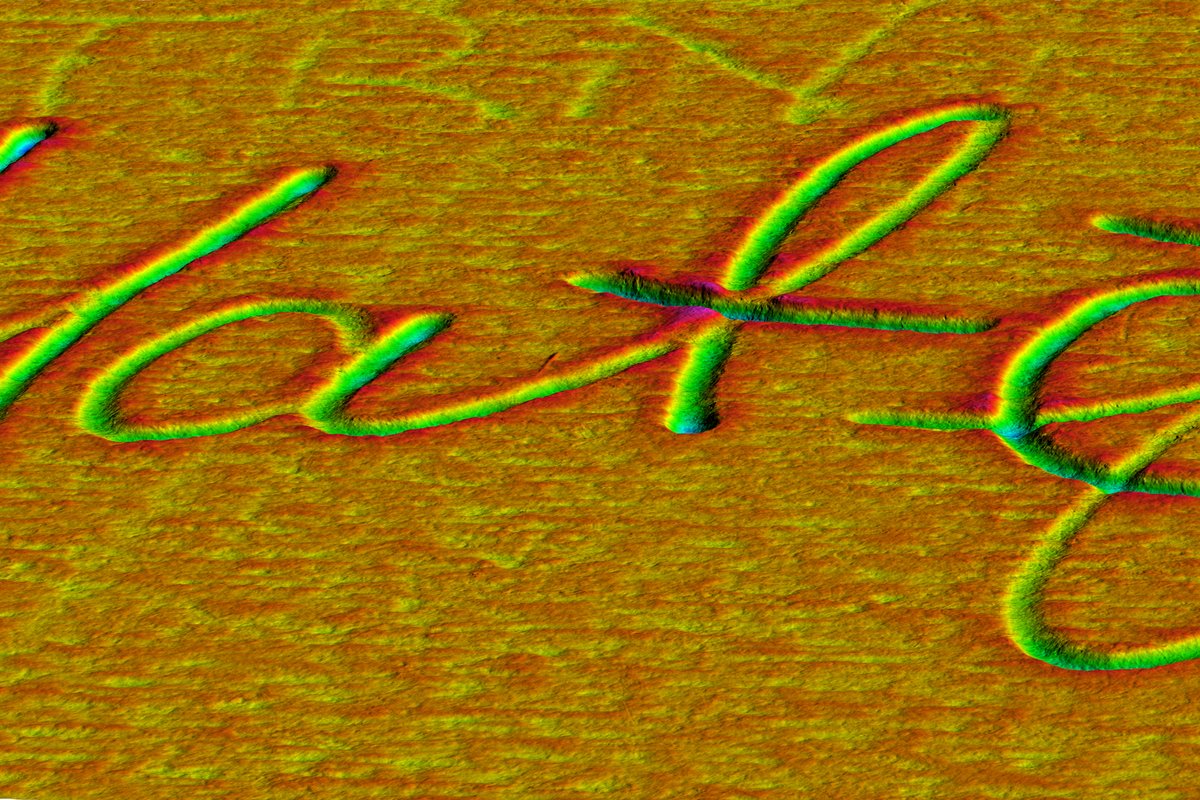

3D imaging of toolmarks.
| Camera | Sensor Type | 20 MP CMOS |
| Sensor Diagonal | 35 mm | |
| Pixel Size | 6.4 μm | |
| Minimal Resolution | 900 PPI | FOV: 143 x 107 mm |
| Maximal Resolution | 3800 PPI | FOV: 34 x 25 mm |
| Illumination | Light source | 8 segment multispectral LED ringlight |

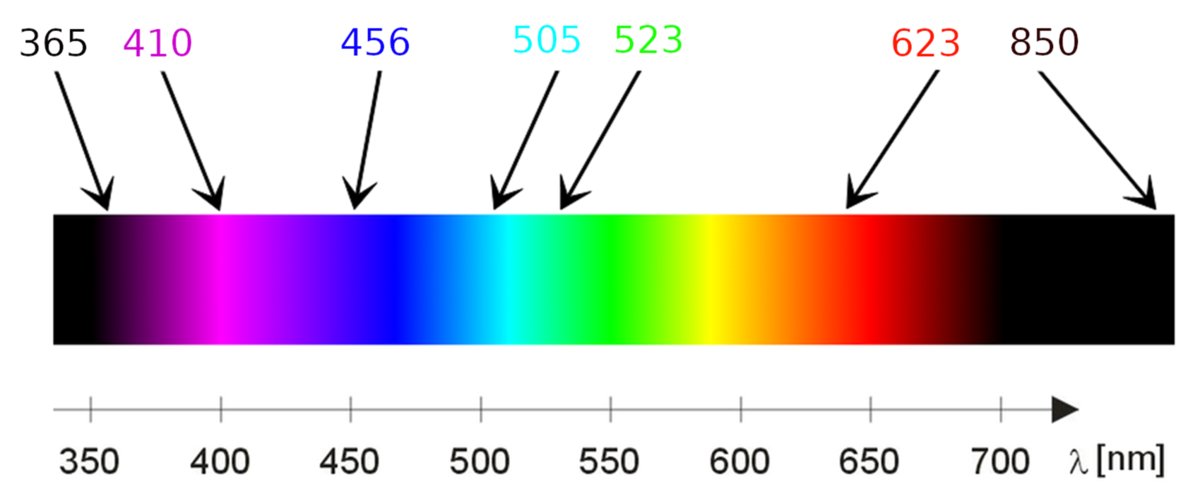

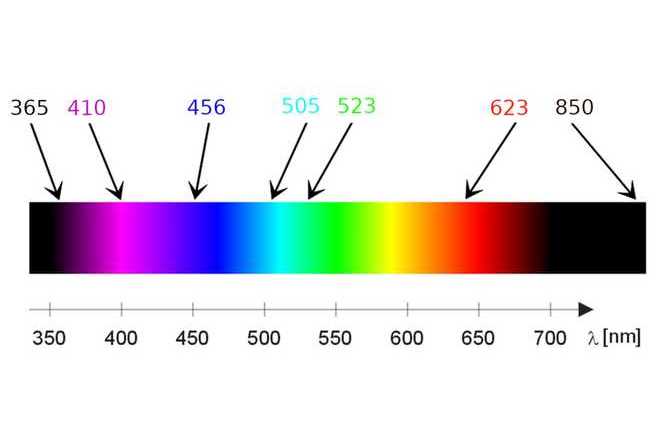

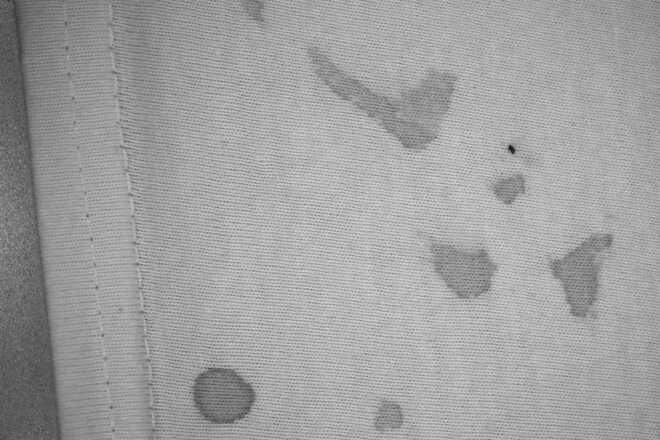

| Wavelengths | 365, 410, 456, 505, 523, 623, 850 nm + white | |
| Accessories | Separate motorized camera and illumination Z drives | |
-
Multi-spectral and multi-directional illumination with RGB and 3D capturing modes.
-
High-performance LED lighting allows for short exposure times and fast camera live image.
-
Two independent Z drives for quick focusing and illumination adjustment.
-
Joystick with buttons for quick access to often used functions.
-
Straightforward software interface for routine work, image documentation, and comparison
-
Wide range of image processing/enhancement tools and comparison modes.
-
Optimized image management, easy swapping of images within comparison, a dedicated file format for exporting/sharing of entire comparisons.
-
Integrated image browser with larger thumbnails than in Windows Explorer.
